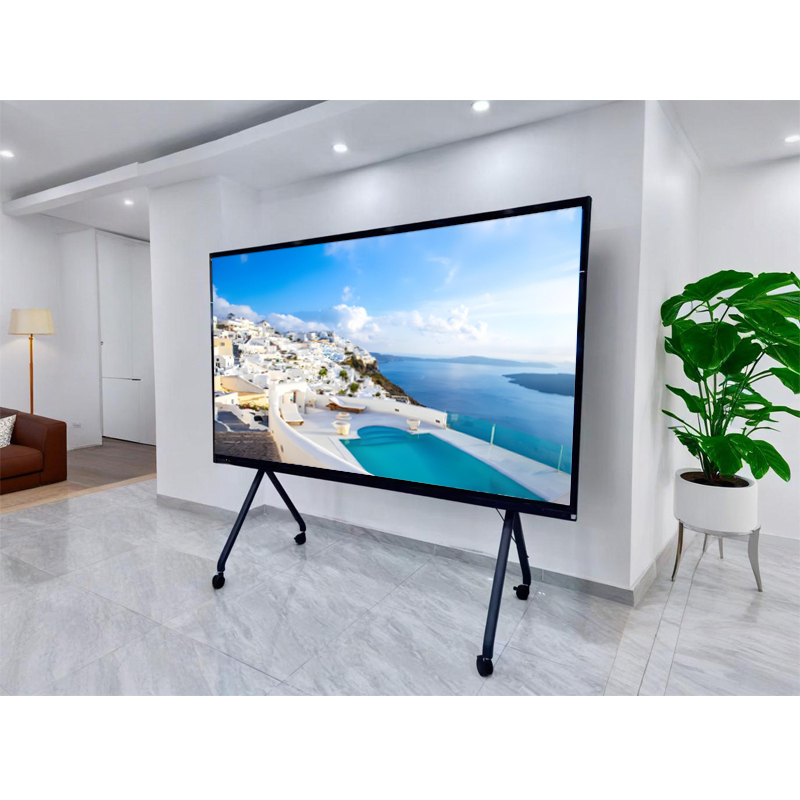

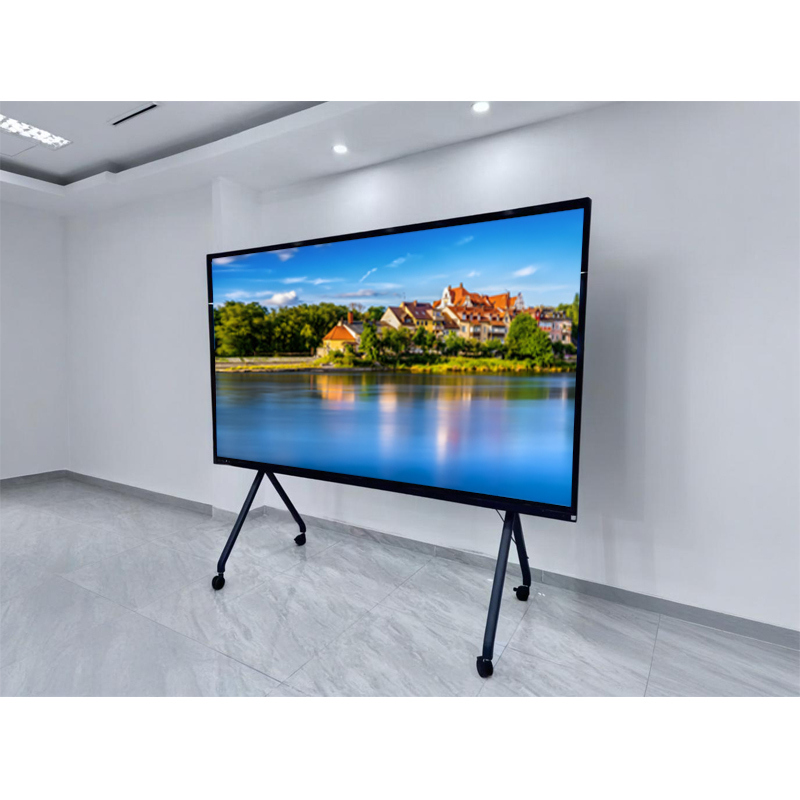

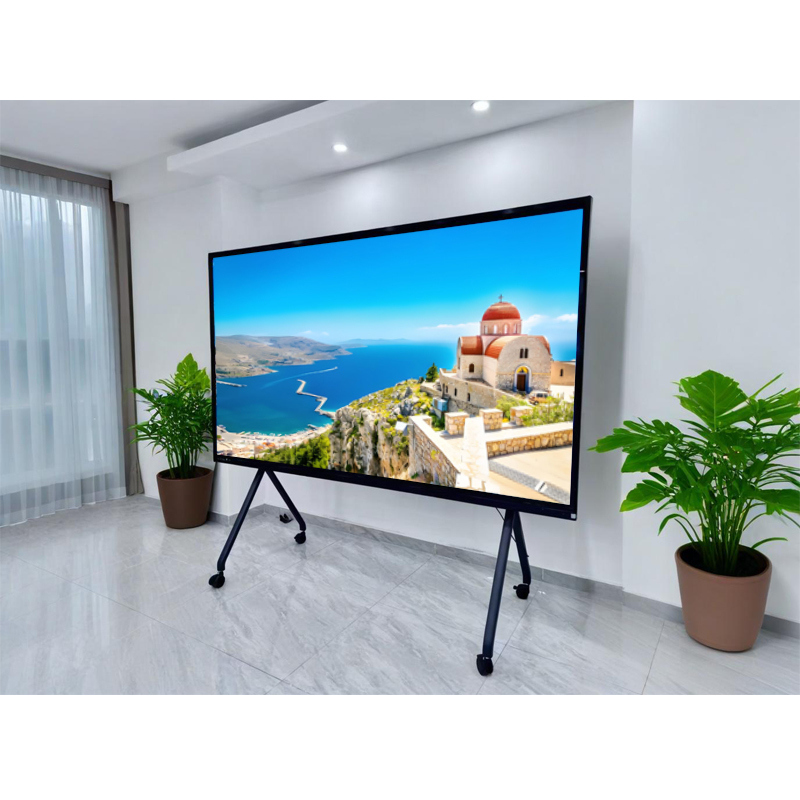

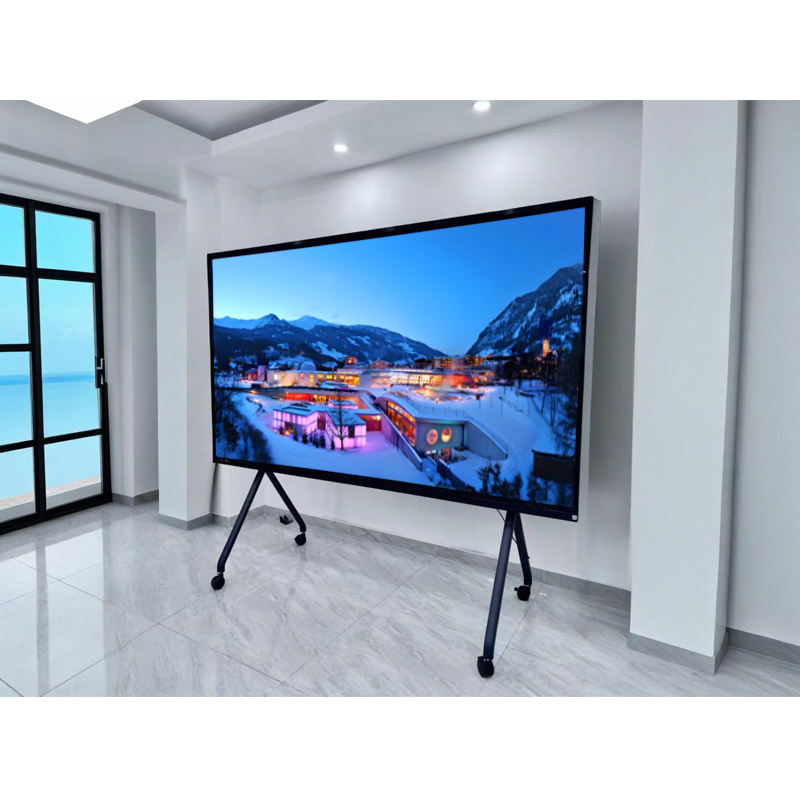

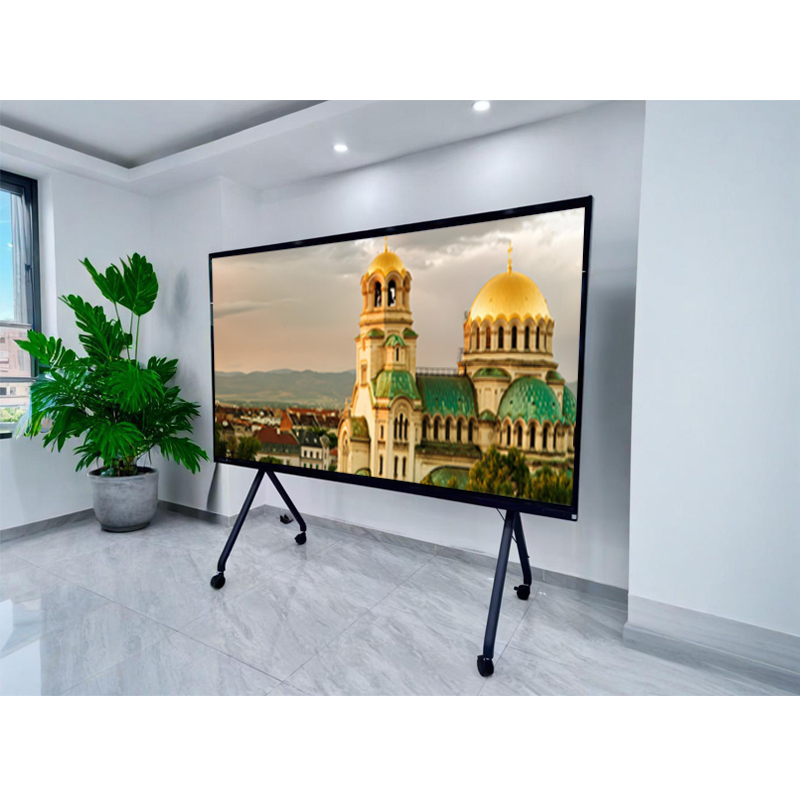

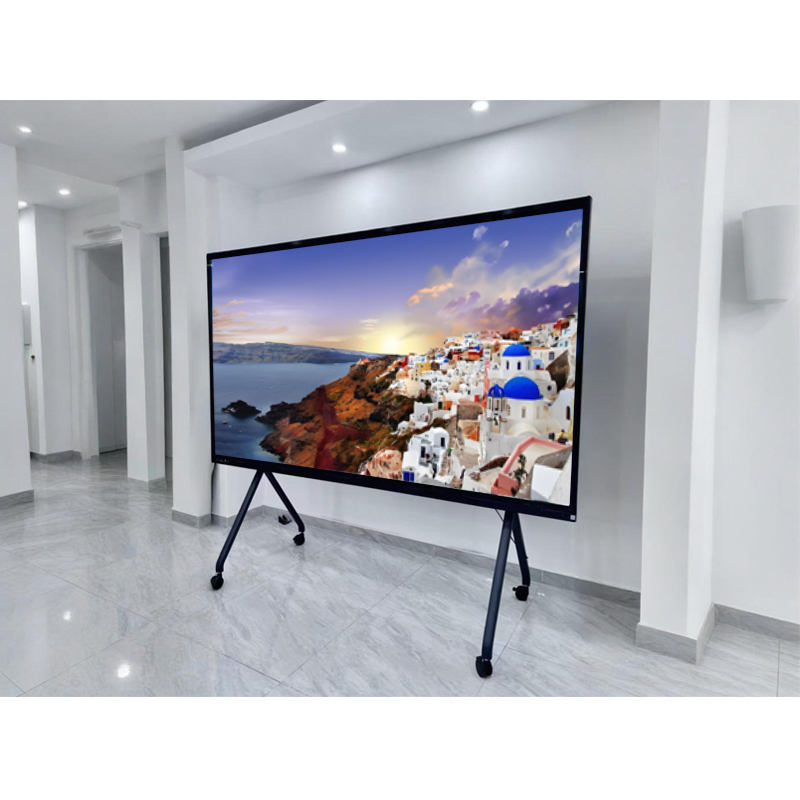

Professional Polarized 3D LED Conference All-in-One Machine With COB Process

Place of Origin:Henan, China
Brand Name:SHENGLONG
Model Number:SMRP-3D2084K/VGGY
Minimum Order Quantity:1 set
Price:$74,685 / set
Product Details
Application: Indoor
Aspect Ratio: 16:9/4:3/1:1
Screen Type: Led
Warranty: 1 Year, 3 Years, 5 Year
Brightness: 0-800cd/㎡ Adjustable
Color: RGB
Color Depth: Supports Adjustable 0-24 Bits
Content Management System: Support
Contrast Ratio: 250000:1
Control Method: Customized
Display Function: LED
Function: 2D/3D
Installation Type: Fixed Installation, Grounding Installation
Ip Rating: IP54
Lifespan (Hours): 100000
Media Available: Datasheet, Photo, EDA/CAD Models
Mounting Type: Fixed Installation, Grounding Installation
Operating Temperature: -20℃~60℃
Pixel Density: 694444/㎡ 444444/㎡ 308640/㎡
Pixel Pitch: P1.2 P1.5 P1.8
Remote Device Management: Split-screen Remote:
Resolution: 3840X2160
Response Time: Quick Reaction
Specification: 3D Display Function
Supplier Type: OEM, ODM, Original Manufacturer
Usage Environment: Indoor
Use: Conference
Type: Polarized 3D Product All-in-One Machine
Weight(KG): 155
Display Mode: 3D Interlaced Row/column Display
Compatibility Mode: Left-right Format/Top-bottom Format
Contrast: ≥10000:1
Image Resolution: ≥99%
Maximum Power Consumption: 800W/㎡
Picture Deconvergence: NO
Image Crosstalk Rate: <1%
Product Description
Professional Polarized 3D LED Conference All-in-One Machine With COB Process 0 Professional Polarized 3D LED Conference All-in-One Machine With COB Process 1 Professional Polarized 3D LED Conference All-in-One Machine With COB Process 2 Professional Polarized 3D LED Conference All-in-One Machine With COB Process 3 Professional Polarized 3D LED Conference All-in-One Machine With COB Process 4 Professional Polarized 3D LED Conference All-in-One Machine With COB Process 5 Professional Polarized 3D LED Conference All-in-One Machine With COB Process 6 Professional Polarized 3D LED Conference All-in-One Machine With COB Process 7
Professional Polarized 3D LED Conference All-in-One Machine With COB Process 8
Type

Polarized 3D Product All-in-One Series
Model Number SMRP-3D2084K/VGGY SMRP-3D1562K/VGGY SMRP-3D1302K/VGGY SMRP-
3D1042K/VGGY
Pixel Pitch 1.2mm 1.8mm 1.5mm 1.2mm
Resolution 3840*2160 1920*1080 1920*1080 1920*1080
Cabinet size 4608mm×2592mm 3456mm×1944mm 2880mm×1620mm 2304mm×1296mm
Technology

Optical circular polarization
Display mode

3D interlaced row/column display
Compatibility mode

2D/3D compatible
3D format

Left-right format/Top-bottom format
2D/3D Resolution

3D model loses half
Video compatible

Supports 2D and 3D video playback, can switch with one click
anti-reflective

Reflectance is less than 2%
Image adaptive

Support
Contrast

≥10000:1
Picture deconvergence

NO
Image resolution

≥99%
Image crosstalk rate

＜1%
Unit net weight

≤7KG
Maintenance method

front maintenance/Post-maintenance
Brightness

0~500CD/㎡Adjustable
Maximum power consumption

800W/㎡
Average power consumption

300W/㎡
Power supply requirements

AC100~240V(50-60Hz)
Frame rate conversion

60Hz
refresh rate

3840Hz
Typical lifespan

100000h
Working temperature range

-10℃~+45℃
Storage temperature range

-20℃~+65℃
Working humidity range

10%~90%,No condensation
Storage humidity range

10%~90%,No condensation

Remark：The parameter differences caused by product upgrade and replacement shall be subject to the final manufacturer's product specification.
Professional Polarized 3D LED Conference All-in-One Machine With COB Process 9
Professional Polarized 3D LED Conference All-in-One Machine With COB Process 10
Professional Polarized 3D LED Conference All-in-One Machine With COB Process 11
Professional Polarized 3D LED Conference All-in-One Machine With COB Process 12
Professional Polarized 3D LED Conference All-in-One Machine With COB Process 13
Professional Polarized 3D LED Conference All-in-One Machine With COB Process 14
Professional Polarized 3D LED Conference All-in-One Machine With COB Process 15 Professional Polarized 3D LED Conference All-in-One Machine With COB Process 16 Professional Polarized 3D LED Conference All-in-One Machine With COB Process 17 Professional Polarized 3D LED Conference All-in-One Machine With COB Process 18 Professional Polarized 3D LED Conference All-in-One Machine With COB Process 19 Professional Polarized 3D LED Conference All-in-One Machine With COB Process 20
Professional Polarized 3D LED Conference All-in-One Machine With COB Process 21

Q1: Can you customize the LED products according to our requirements?

A1: Of course! We offer comprehensive customized services for LED screens.
Our engineering team will provide you with a tailor-made solution within 24 hours.

Q2: Do your LED products have certifications for international markets (such as those from the EU and the US)?

A3: We have passed comprehensive certification and can meet global import standards, including: CE/RoHS; FCC ; ISO9001

Q3: What kind of after-sales support will you provide?

A4: We offer comprehensive after-sales support for our products:
Warranty period: 2-year warranty for the entire screen (the LED module is the core component, with a 3-year warranty);
Spares: Each order will come with an additional 1-2% of spare LED modules/components for emergency replacement;

Q4: Can I place an order for a sample first to test the quality of the LED screen?

A5: Yes, sample orders are welcome! We can provide a small standard LED screen, or customize a sample according to your requirements to test. If your batch order reaches 100 square meters or more, the cost can be refunded.
