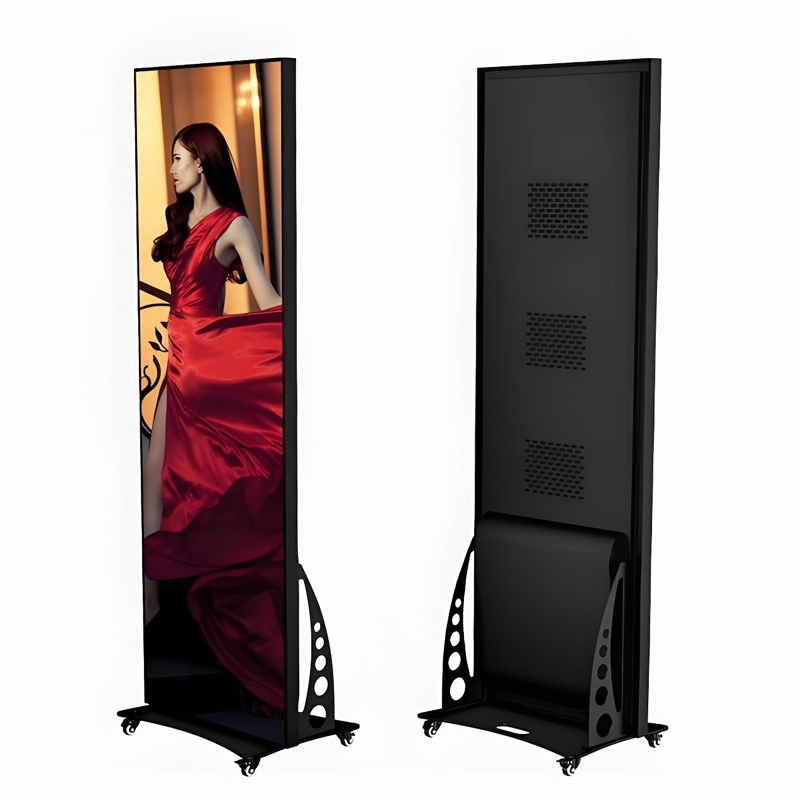

Professional Customized Shock-Proof Business Smart Advertising Player LED Poster Display Screen
Place of Origin:Henan, China
Brand Name:shenglong
Model Number:SLED-G 64192 25/S
Minimum Order Quantity:1 unit
Price:$1,045 / unit
Product Details
Application:
Indoor, Outdoor
Aspect Ratio:
1:3
Screen Type:
Customized
Warranty:
5 Year, 1 Year, 3 Years
Brightness:
0-800cd
Color:
RGB
Color Depth:
Supports Adjustable 0-24 Bits
Content Management System:
Customized
Contrast Ratio:
≥5000:1
Control Method:
Synchronous Control
Dimensions:
640mm * 1920mm * 60mm
Display Function:
Flat Display
Function:
SDK
Installation Type:
No Installation Required
Ip Rating:
IP35
Lifespan (Hours):
100000
Media Available:
Datasheet, Photo, EDA/CAD Models
Mounting Type:
Plug In And Use
Operating Temperature:
-20℃~60℃
Operation System:
Backlight
Pixel Density:
160000/㎡
Pixel Pitch:
P2.5
Pixels:
2.5mm
RAM:
Customized
Remote Device Management:
Customized
Resolution:
256*768
Size:
50
Specification:
Digital Poster, Touch Screen, Kiosk, LED Cabinet
Storage:
Customized
Supplier Type:
Original Manufacturer, ODM, OEM
Touch Screen:
Customized
Touch Type:
Customized
Usage Environment:
10% -90% Relative Humidity, No Condensation
Use:
LED Video Wall
View Angle（H/V）:
140°/140°
Voltage:
100V-240V
Product Name:
LED Poster Screen
Module Pixel:
128*64
Led Lamp:
SMD2121
Cabinet Pixel:
256*768
Module Size (Mm):
320*160*mm
Cabinet Size(Mm):
640*1920mm
Max Power(W/m2):
440w/㎡
Maintenance:
Front
Power Input:
100-240v AC 50-60Hz
Install Method:
Stack
Product Description
Specification
| Product Model | SLED-G 64192 18/S | SLED-G 64192 20/S | SLED-G 64192 25/S |
| Pixel Pitch | 1.86mm | 2mm | 2.5mm |
| Led Lamp | SMD1515 | SMD1515 | SMD2121 |
| Module Pixel | 172*86 | 160*80 | 128*64 |
| Cabinet Pixel | 344*1032 | 320*960 | 256*768 |
| Module Size (mm) | 320*160*mm | ||
| Cabinet Size(mm) | 640*1920mm | ||
| Brightness(nits)/Scan | 800-1000(43s) | 800-1000(40s) | 800-1000(32s) |
| Max Power(w/m2) | 440w/㎡ | ||
| Install Method | Stack | ||
| Maintenance | Front | ||
| Power Input | 100-240v AC 50-60Hz | ||
| Working Humidity | -20~ +45 | ||
| Refresh Rate(Hz) | 3,840Hz | ||
| IP Rating | IP35 | ||
| Signal Input | S-video/VGA/DVI/HDMI/SDI | ||
Q1: Can you customize the LED products according to our requirements?
A1: Of course! We offer comprehensive customized services for LED screens.Our engineering team will provide you with a tailor-made solution within 24 hours.
Q2: Do your LED products have certifications for international markets (such as those from the EU and the US)?
A2: We have passed comprehensive certification and can meet global import standards, including: CE/RoHS; FCC ; ISO9001
Q3: What kind of after-sales support will you provide?
A3: We offer comprehensive after-sales support for our products:Warranty period: 2-year warranty for the entire screen (the LED module is the core component, with a 3-year warranty);Spares: Each order will come with an additional 1-2% of spare LED modules/components for emergency replacement;
Q4: Can I place an order for a sample first to test the quality of the LED screen?
A4: Yes, sample orders are welcome! We can provide a small standard LED screen, or customize a sample according to your requirements to test. If your batch order reaches 100 square meters or more, the cost can be refunded.
Product Summary
Specification Product Model SLED-G 64192 18/S SLED-G 64192 20/S SLED-G 64192 25/S Pixel Pitch 1.86mm 2mm 2.5mm Led Lamp SMD1515 SMD1515 SMD2121 Module Pixel 172*86 160*80 128*64 Cabinet Pixel 344*1032 320*960 256*768 Module Size (mm) 320*160*mm Cabinet Size(mm) 640*1920mm Brightness(nits)/Scan 800...
