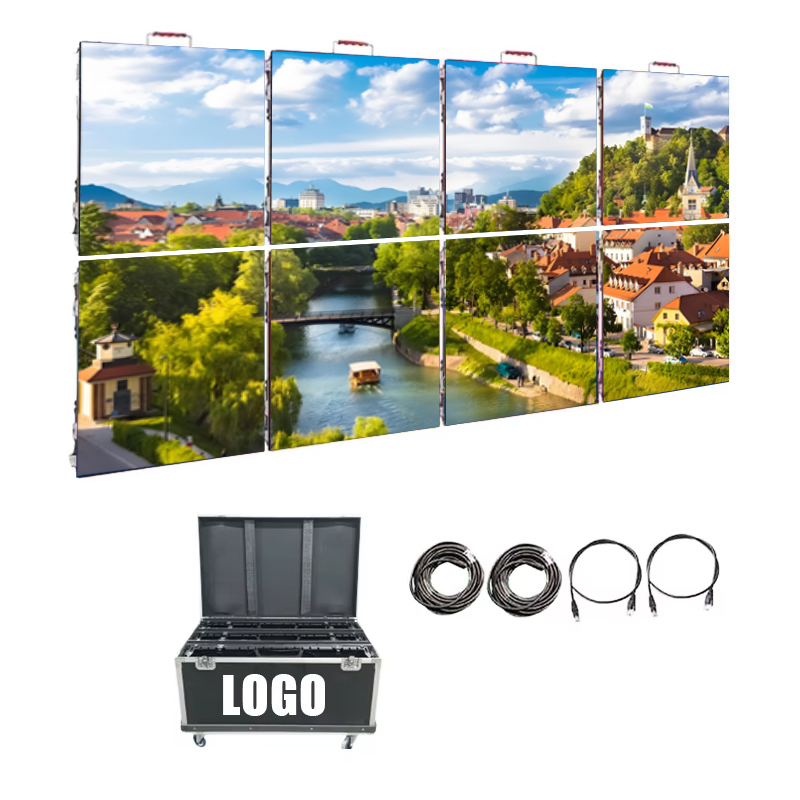

500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event

Place of Origin:Henan, China
Minimum Order Quantity:1 piece
Price:$515-982 / piece
Product Details
Application: Indoor, Outdoor
Pixels: P2.976
Type: LED
Warranty: 3 Years
Brightness: 800, 4500
Content Management System: No
Contrast Ratio: 6000:1
Media Available: Datasheet, EDA/CAD Models, Photo
Operating Temperature: -20℃~60℃
Pixel Density: 112896
Refresh Rate: 3840hz
Remote Device Management: No
Sunlight Readable: No
Usage Environment: Outdoor, Indoor
Use: Advertising Publish, Airport, Education, Display Of Dishes, Elevator, Exhibition Hall, Medical Treatment, Restaurant & Hotel Supplies, Retail Store, Self-Service Business, Shopping Mall, Subway, Wayfinding, Welcome Display
Product Description
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 0
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 1
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 2
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 3

Parameter

SLED-ZN 5050 26/S

SLED-ZN 5050 26/S

SLED-ZN 5050 26/S




Module

Parameter

Pixel Pitch(mm)

2.6

2.97

3.91

LED Type

SMD1515

SMD1515

SMD2020

Module Resolution(W*H)

96*96

84*84

64*64

Pixel Density(point/㎡)

147456

112896

65536







Cabinet

Parameter

Module Composition(W*H)

2*2=4Pcs

Cabinet Resolution(W*H)

192*192

168*168

128*128

Cabinet Size(W*H*D,mm)

500*500*76

Weight(kg/Cabinet)

≤7.5

Maintenance Method

Front Maintenance

Cabinet Flatness( mm)

≤0.3








Optical

Parameter

White Balance(nits)

≥800

Color Temperature(K)

3000~15000K Adjustable

Horizontal Viewing Angle(°)

≥ 160

Vertical Viewing Angle(°)

≥ 140

Contrast Ratio

≥6000:1

Color Uniformity

±0.003Cx, Cy within

Visual Distance(m) (=PITCH*1)

≥3

≥3

≥4

Electrical

Average Power Consumption(W/㎡)

≤212

≤207

≤ 180

Parameter

Max Power Consumption(W/㎡)

≤636

≤620

≤ 540

Input Voltage(V)

100~240

100~240

100~240

Module Connection

Flexible Connection




Processing
Performance

Scan

1/24S

1/21S

1/16S

Refresh Rate(Hz)

≥3840

Driving Mode

Common Positive Constant Current PWM Drive

Gray Scale (bit)

≥ 14





Operating

Parameter

Lifespan(hrs)

100,000

Operation Temperature(℃)

-10~40

Storage Temperature(℃)

-20~50

Operation Humidity(RH)

10%~60%

Storage Humidity(RH)

10%~65%

500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 4
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 5
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 6
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 7
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 8
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 9
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 10
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 11
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 12
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 13
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 14
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 15
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 16
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 17
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 18
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 19

Cultural and tourism commercial performance solutions, providing full-site stage design to help users enjoy uninterrupted high-definition live streaming.

Equipped with a complete set of professional audio and video processing systems for on-site stages, it features an original fully die-cast aluminum fully sealed box body. Combined with a unique quick-lock design and a fine-tuning mechanism for seams, it can easily and quickly achieve high-precision seamless splicing of the entire screen, with low brightness, high gray scale and high refresh rate, making the displayed picture more delicate, realistic and vivid.

The realistic visuals and stunning music are perfectly combined to create a dreamy stage effect, allowing the audience on site to fully immerse themselves in the lively atmosphere and participate in the star-studded audio-visual feast throughout, igniting your stage performance with creativity.

This solution is mainly applied to various high-quality rental performance venues such as indoor and outdoor stage backgrounds, concerts, large-scale events, conference forums, exhibition displays, stage performances, TV stations, wedding events, hotels, bars, KTVS, etc

500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 20
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 21
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 22
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 23
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 24
Company Profile
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 25
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 26
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 27
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 28
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 29
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 30
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 31

Zhengzhou Shenglong Information Technology Co., Ltd. (stock code: 831361), founded in 1998, is one of the earliest high-tech enterprises in the world engaged in the design, production and installation of LED display systems. The company adheres to the concept of creative R&D design and is committed to the research and development of technical products in the field of special displays. It is an advocate and pioneer of new display technologies in China.

Zhengzhou Shenglong Information Technology Co., Ltd. has a technical team with doctoral supervisors, master supervisors and senior engineers as the core. The technical staff have decades of R&D experience. Many of them have participated in the compilation of the textbook "Optoelectronic Display Technology and Application" for Chinese universities. Team members have participated in the
construction of major projects such as the Chinese government's countdown board for the return of Hong Kong to the world-renowned Tiananmen Square, the largest screen in Asia, and the Sydney Olympics.

500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 32

Zhengzhou Shenglong Information Technology Co., Ltd. has successively passed ISO quality system, national standard quality system, information security management system, intellectual property management system, as well as US FCC certification, EU CE, EU RoHS and other certifications;

It has more than 70 patents and software copyrights, and has established the "Henan Intelligent Control and Aviation Information Technology Engineering Technology Research Center" and "Zhengzhou Information Security Protection Display System Engineering Technology Research Center" scientific research platforms recognized by the government;

Won nearly 100 qualifications and honors such as "Specialized and New", "Top 50 Electronic Information Enterprises", "National 100 Quality and Integrity Enterprises", "National VR Industry Quality Leading Enterprise", "Science and Technology Innovation Award", and "Excellent Technology Award"

500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 33

In 2003, Shenglong Co., Ltd. successfully developed a sub-outdoor display system, which reduced the cost of conventional outdoor display screens by more than half and quickly became popular throughout the country;

In 2010, the first domestic macro rear projection based on LED light source was successfully developed and patented, effectively solving the moiré problem caused by camera shooting of studio and stage background screens, and creating a new display technology field;

In 2013, a series of three-dimensional display products based on LED light source were successfully developed and patented, solving the problem of lack of 3D large-screen display equipment in domestic 3D teaching. It was listed as a recommended product for 3D classroom solutions in the "3D Education Research Blue Book" of the Ministry of Education, and has been widely used in many primary and secondary schools, colleges and universities, and research institutes across the country;

Based on the needs of confidentiality system customers, Shenglong Co., Ltd. took the lead in developing the "Information Security Display System" in 2020, filling the gap in the field of information security display in China.

Project Construction

Professional construction team, On-site installation service.

500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 34
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 35
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 36
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 37
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 38
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 39
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 40
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 41
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 42
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 43
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 44
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 45
Customer Photos
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 46
Exhibition
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 47
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 48
500*500 500*1000 P2.976 Indoor Outdoor LED Video Background Wall for Stage Event 49
Product Summary

Parameter SLED-ZN 5050 26/S SLED-ZN 5050 26/S SLED-ZN 5050 26/S Module Parameter Pixel Pitch(mm) 2.6 2.97 3.91 LED Type SMD1515 SMD1515 SMD2020 Module Resolution(W*H) 96*96 84*84 64*64 Pixel Density(point/㎡) 147456 112896 65536 Cabinet Parameter Module Composition(W*H) 2*2=4Pcs Cabinet Resolution(W...
