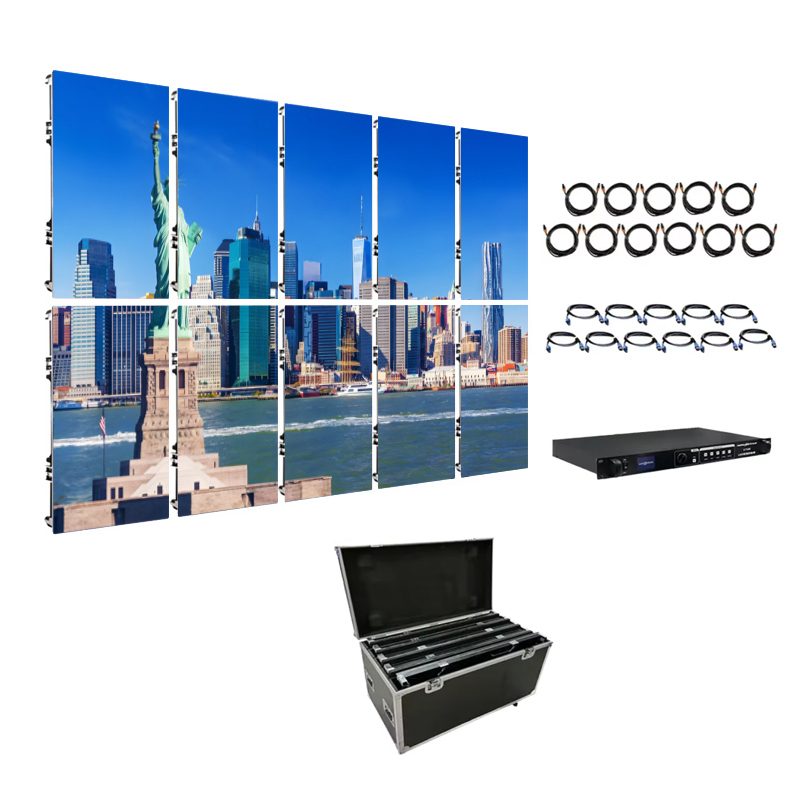

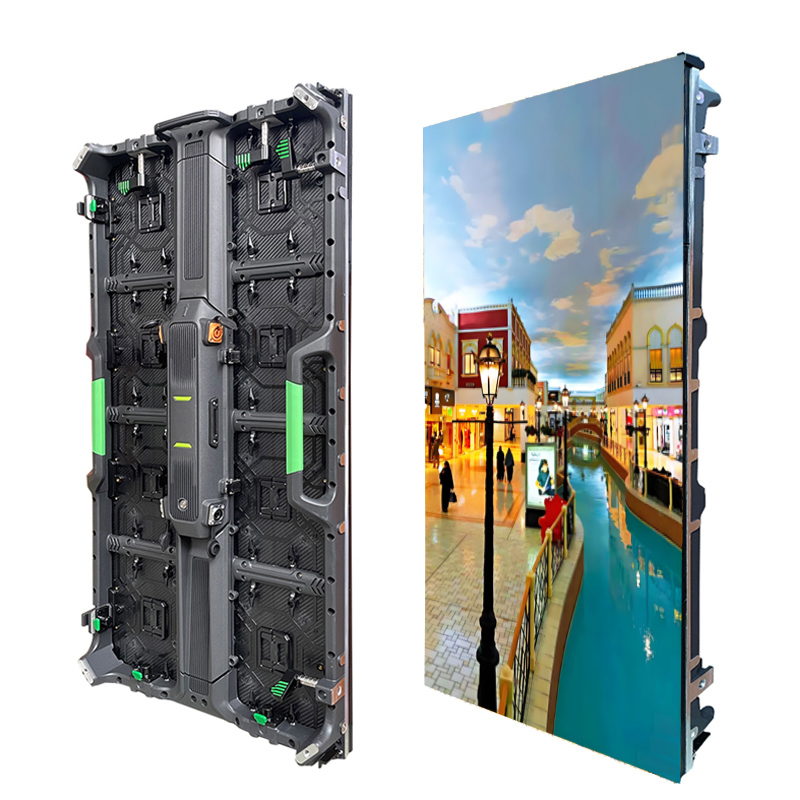

Full Color Waterproof Giant Stage LED Video Wall Panel Screen Concert Rental Outdoor LED Display
Place of Origin:Henan, China
Brand Name:SHENGLONG
Model Number:SLED-ZN 5050 26/S
Minimum Order Quantity:1 piece
Price:$515-982 / piece
Product Details
Application:
Indoor, Outdoor
Aspect Ratio:
16:9/4:3/Customized
Screen Type:
Led
Warranty:
3 Years, 5 Year, 1 Year
Brightness:
5000cd
Color:
RGB
Color Depth:
Supports Adjustable 0-24 Bits
Contrast Ratio:
10000:1
Dimensions:
500*500, 500*1000
Display Function:
Flat Display
Function:
SDK
Installation Type:
Wall Hanging, Hoisting, And Vertical Installation
Ip Rating:
IP65
Lifespan (Hours):
100000h
Media Available:
Datasheet, Photo, EDA/CAD Models
Operating Temperature:
-20℃~60℃
Operation System:
Backlight
Pixel Density:
148225/113569
Pixel Pitch:
P2.6/P2.97/P3.91
Remote Device Management:
Support
Resolution:
192*192/168*168/128*128/192*384/168*336/128*256
Specification:
Video Wall
Storage:
Customized
Supplier Type:
OEM, ODM, Original Manufacturer
Usage Environment:
Indoor, Outdoor
Use:
Stage Event
View Angle（H/V）:
H.140°/V.140°
Voltage:
110/220V
Certificate:
CE/CCC/FCC/ROHS/ISO9001/PSE
Product Description
| Product Model | P2.6 | P2.9 | P3.9 | P2.9 | P3.9 | P4.81 |
|---|---|---|---|---|---|---|
| Pixel Pitch | 2.604mm | 2.9mm | 3.91mm | 2.9mm | 3.91mm | 4.81mm |
| Density（dots/㎡） | 147,456 | 112,896 | 65,536 | 112,896 | 65,536 | 43,222 |
| Module Pixel | 96*96 | 84*84 | 64*64 | 84*84 | 64*64 | 52*52 |
| Cabinet Pixel | 192*192 | 168*168 | 128*128 | 168*168 | 128*128 | 104*104 |
| Module Size （mm） | 250*250mm | 250*250mm | ||||
| Cabinet Size（mm） | 500*500*70mm | 500*500*70mm | ||||
| Brightness | ≥1000cd | ≥4500cd | ||||
| Max Power(w/m2) | 480w/㎡ | 650/245w/㎡ | 550/185/730/245w/㎡ | 550/185/730/245w/㎡ | ||
| Maintenance | Front | Front | ||||
| Power Input | 100-240v AC 50-60Hz | 100-240v AC 50-60Hz | ||||
| Working Humidity | -20~+45 | -20~+45 | ||||
| Refresh Rate(Hz) | 3840Hz | 3,840Hz | ||||
| Signal Input | S-Video/VGA/DVI/HDMI/SDI | S-Video/VGA/DVI/HDMI/SDI | ||||
| Note: Due to the large number of product sizes, only some products are listed for reference. Please contact us for other sizes. | ||||||
Company Profile
Customer Photos
Exhibition
Product Summary
Product Model P2.6 P2.9 P3.9 P2.9 P3.9 P4.81 Pixel Pitch 2.604mm 2.9mm 3.91mm 2.9mm 3.91mm 4.81mm Density（dots/㎡） 147,456 112,896 65,536 112,896 65,536 43,222 Module Pixel 96*96 84*84 64*64 84*84 64*64 52*52 Cabinet Pixel 192*192 168*168 128*128 168*168 128*128 104*104 Module Size （mm） 250*250mm 250...
