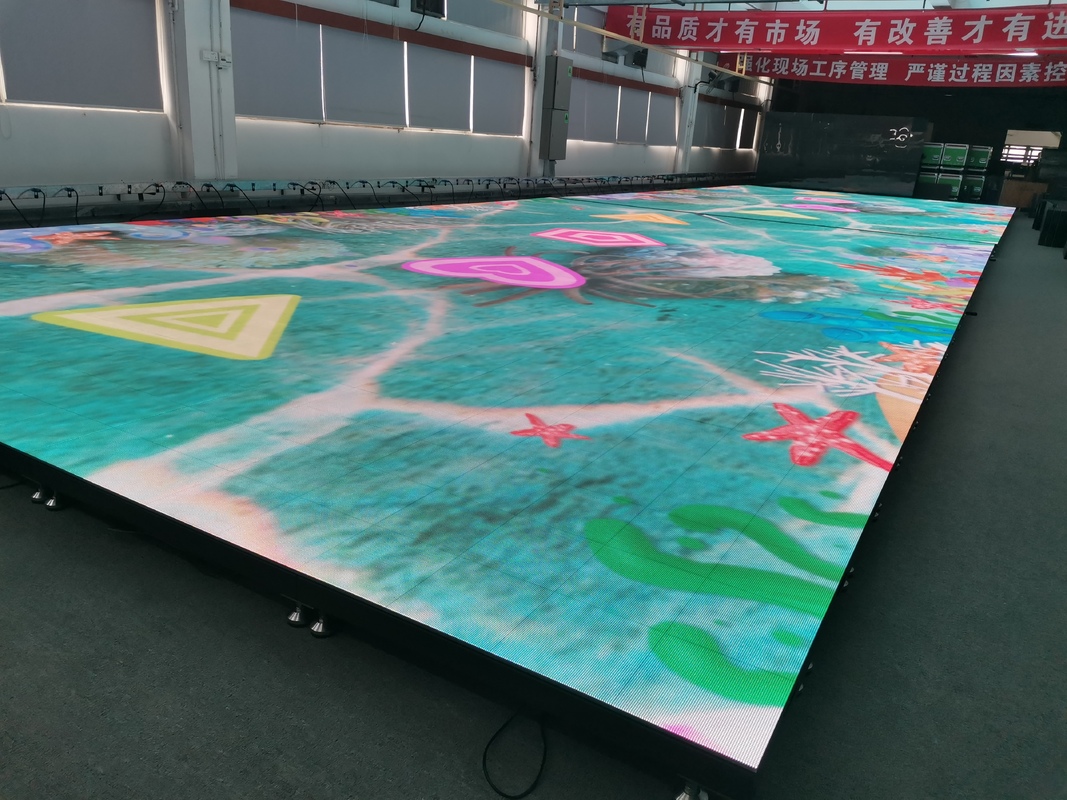

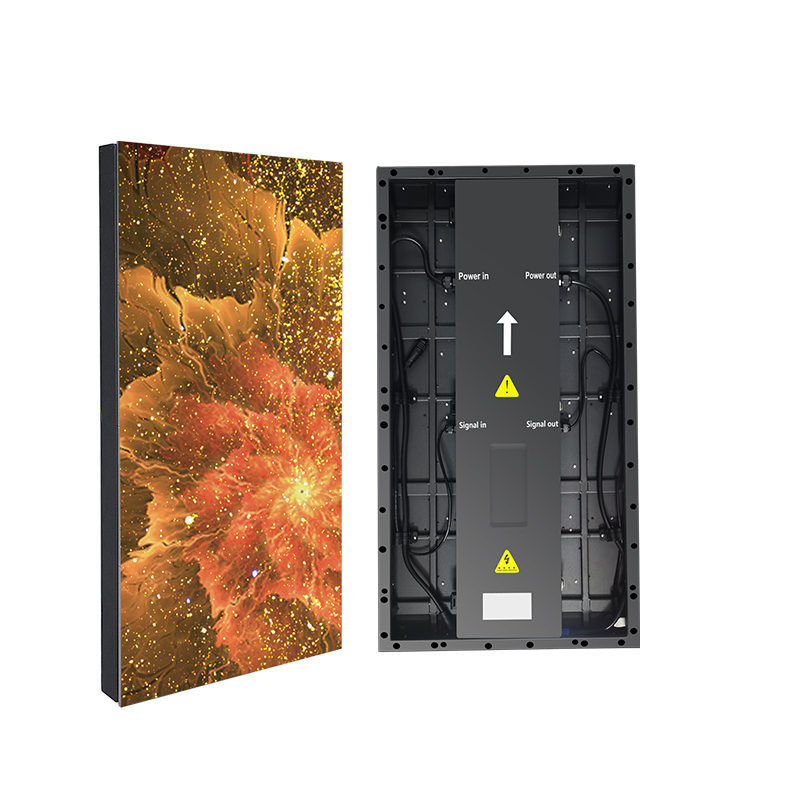

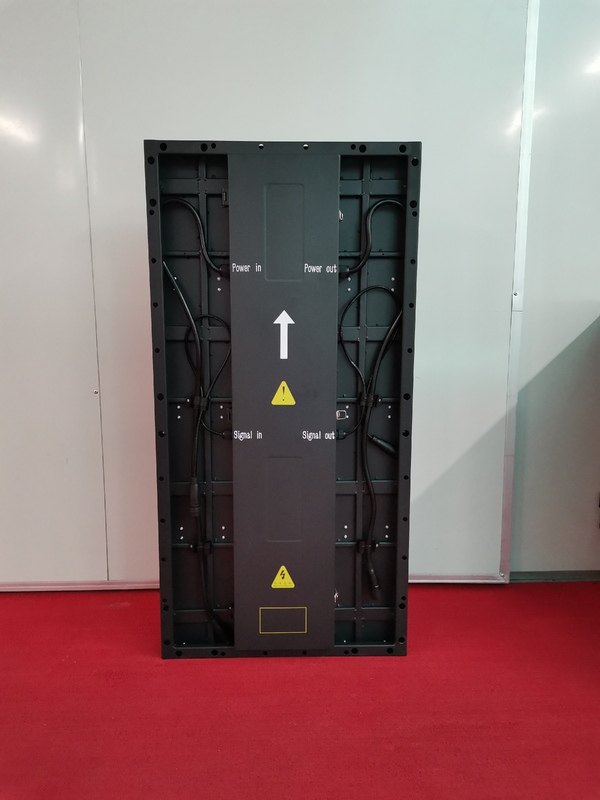

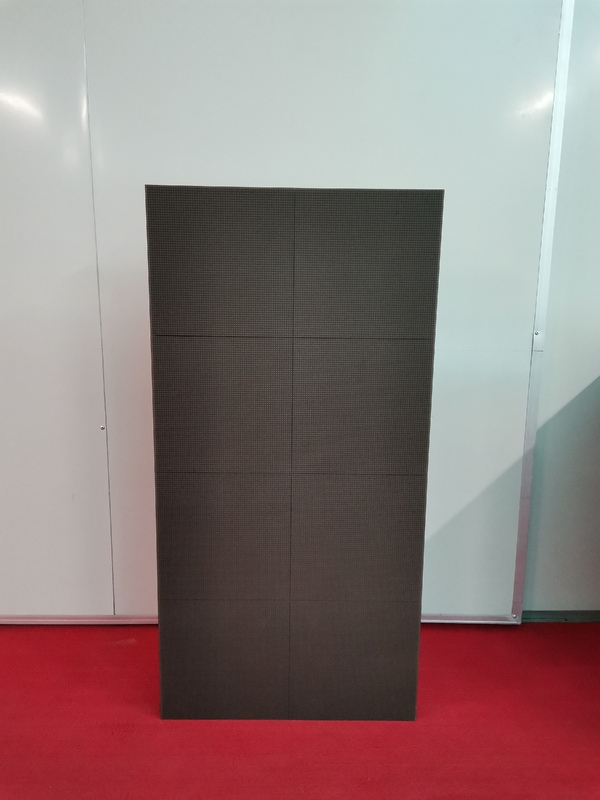

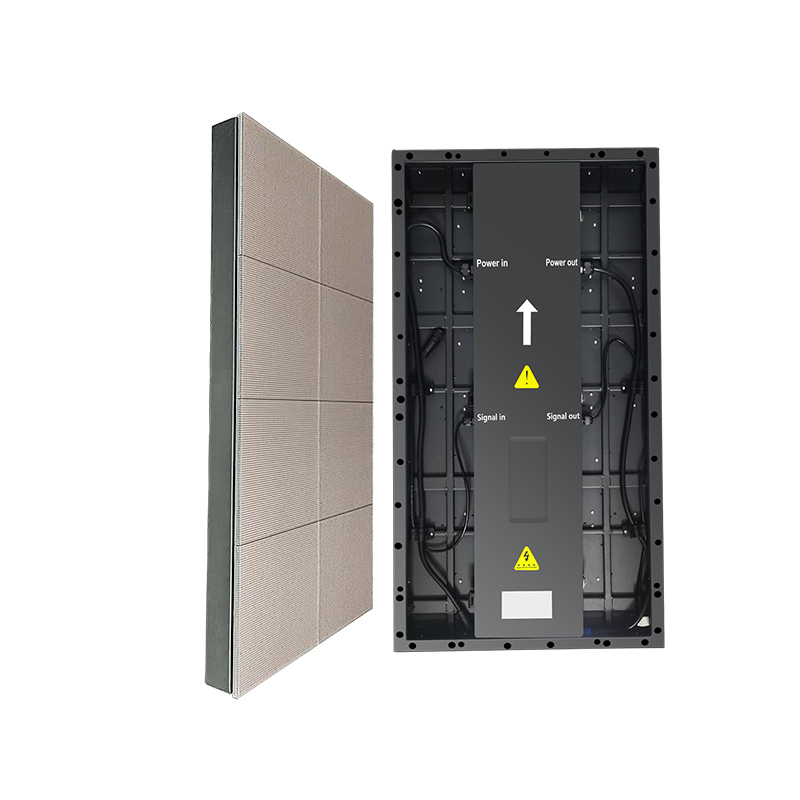

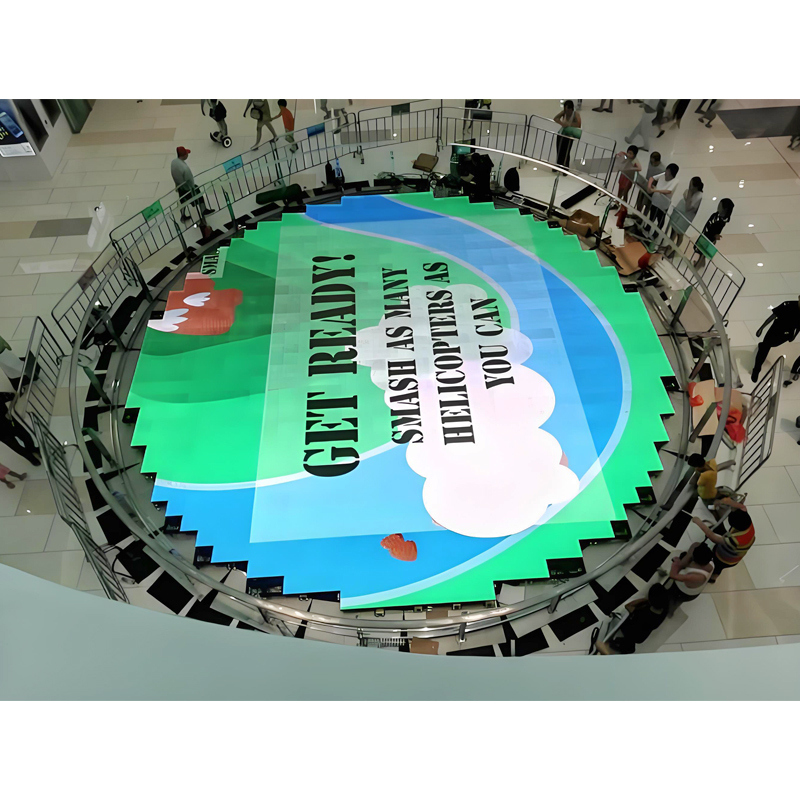

Wholesale Selling LED Stage Floor Screen P2.5 Dance LED Floor Display Screen

Place of Origin:China
Brand Name:Shenglong
Model Number:SLED-D 50100 25/S
Minimum Order Quantity:1 piece
Price:$1,014 / piece
Product Details
Application: Indoor, Outdoor
Aspect Ratio: 16:9, 4:3, Customized
Screen Type: Led
Warranty: 3 Years, 5 Year, 1 Year
Brightness: ≥1200, ≥1200
Color: RGB
Color Depth: Supports Adjustable 0-24 Bits
Content Management System: Yes
Contrast Ratio: 10000:1
Control Method: Computer-Controlled
Dimensions: 500*1000*60
Display Function: Flat Display
Installation Type: Box Installation
Ip Rating: IP65
Lifespan (Hours): 100000
Media Available: Datasheet, EDA/CAD Models, Photo
Mounting Type: Behind Glass
Operating Temperature: 0°C-50°C
Operation System: Backlight
Pixel Density: 160000 147456 112896 65536
Pixel Pitch: 2.5
Pixels: 2.5, 2.5
RAM: Customized
Remote Device Management: No
Resolution: 200*400
Size: 500*1000 Mm
Specification: 500*1000*60
Storage: Customized
Usage Environment: -20~±55
Use: Floor, Shopping Mall
View Angle（H/V）: H.140°/V.140°
Voltage: 110/220V
Product Name: Floor Display Screen
Model: SLED-D 50100 25/S
Type: LED Display
Usage: Wedding
Feature: Easy Installation
Installation: Floor Staning
Certificate: CE ROHS FCC CCC ISO9001
Product Description
Wholesale Selling LED Stage Floor Screen P2.5 Dance LED Floor Display Screen 0
Wholesale Selling LED Stage Floor Screen P2.5 Dance LED Floor Display Screen 2
Wholesale Selling LED Stage Floor Screen P2.5 Dance LED Floor Display Screen 4
Parameter
P2.5
P2.604
P2.976
P3.91
Module Parameter
Pixel Structure
SMD LED 1R,1G,1B
SMD LED 1R,1G,1B
SMD LED 1R,1G, 1B
SMD LED 1R,1G,1B
Pixel Pitch(mm)
2.5*2.5
2.604*2.604
2.976*2.976
3.91*3.91
Module Resolution(W*H)
100*100
96*6
84*84
64*64
Module Size(W*H*D)mm
250*250*18
250*250*18
250*250*18
250*250*18
Module Weight(KG)
0.75
0.75
0.75
0.75
Cabinet Parameter
Module Composition(W*H)
2*4
2*4
2*4
2*4
Cabinet Resolution(W*H)
200*400
192*384
168*336
128*256
Cabinet Size(W*H*D)mm
500*1000*78
500*1000*78
500*1000*78
500*1000*78
Pixel Density(point/㎡)
160000
147456
112896
65516
Protection Level
Indoor(Front IP54，Back IP43)
Indoor(Front IP54，Back IP43)
Indoor(Front IP54，Back IP43)
Indoor(Front IP54，Back IP43)
Flatness（mm）
≤1
≤1
≤1
≤1
White Balance Brightness(nits)
Indoor≥1300
Indoor≥1300
Indoor≥1300
Indoor≥1300
Color Temperature(K)
6000-9300Adjustable
6000-9300Adjustable
6000-9300Adjustable
6000-9300Adjustable
Horizontal Viewing Angle(°)
˃120
>120
>120
>120
Electrical Parameter
Power Consumption(A/Cabinet）
DC6~7
DC6~7
DC6~7
DC6~7
Max Power Consumption(W/㎡)/Average Power Consumption(W/㎡)
800/300
800/300
800/300
800/300
Input Voltage(V)
AC220V
AC220V
AC220V
AC220V
Processing Performance
Driving Method
Constant Current Driving
Constant Current Driving
Constant Current Driving
Constant Current Driving
Frame Rate(Hz)
50＆60
50＆60
50＆60
50＆60
Refresh Rate(Hz)@60HzFrame Rate Signal
≥3840or≥7680
≥3840or≥7680
≥3840or≥7680
≥3840or≥7680
Operating Parameter
Lifespan(hrs)
100,000H
100,000H
100,000H
100,000H
Operation Temperature(℃)
-20—55
-20—55
-20—55
-20—55
Storage Temperature(℃)
-30—60
-30—60
-30—60
-30—60
Operation Humidity(RH) Frost-free
10—90%
10—90%
10—90%
10—90%
Storage Humidity(RH) Frost-free
10—95%
10—95%
10—95%
10—95%
Out-of-control Point
≤4/100000
≤4/100000
≤4/100000
≤4/100000
Screen Surface Color
Color Consistency95%
（White transparent or tawny)
Color Consistency95%
（White transparent or tawny)
Color Consistency95%
（White transparent or tawny)
Color Consistency95%
（White transparent or tawny)
Interactive Function
No
No
No
No
Wholesale Selling LED Stage Floor Screen P2.5 Dance LED Floor Display Screen 6
Wholesale Selling LED Stage Floor Screen P2.5 Dance LED Floor Display Screen 8
Wholesale Selling LED Stage Floor Screen P2.5 Dance LED Floor Display Screen 10
Wholesale Selling LED Stage Floor Screen P2.5 Dance LED Floor Display Screen 12
Wholesale Selling LED Stage Floor Screen P2.5 Dance LED Floor Display Screen 14
Wholesale Selling LED Stage Floor Screen P2.5 Dance LED Floor Display Screen 16
Q1: Can you customize the LED products according to our requirements?
A1: Of course! We offer comprehensive customized services for LED screens.Our engineering team will provide you with a tailor-made solution within 24 hours.

Q2: Do your LED products have certifications for international markets (such as those from the EU and the US)?
A3: We have passed comprehensive certification and can meet global import standards, including: CE/RoHS; FCC ; ISO9001

Q3: What kind of after-sales support will you provide?
A4: We offer comprehensive after-sales support for our products:
Warranty period: 2-year warranty for the entire screen (the LED module is the core component, with a 3-year warranty); Spares: Each order will come with an additional 1-2% of spare LED modules/components for emergency replacement;

Q4: Can I place an order for a sample first to test the quality of the LED screen?
A5: Yes, sample orders are welcome! We can provide a small standard LED screen, or customize a sample according to your requirements to test. If your batch order reaches 100 square meters or more, the cost can be refunded.
