Glasses-free 3D advertising display

Glasses-free 3D advertising display

Place of Origin:

China

Brand Name:

SHENGLONG

Certification:

CKEYS250731015 CKEYS250731013 2021010903397492 CKEYS250804033 CKEYS250731016

Model Number:

SLCD-3D2K55-L

Contact Us
Request A Quote
Product Details
Screen Size:
55 Inches
Dimensions (including Wall Mount):
1250.2 × 721.6 × 86.8 Mm
Optimal Viewing Distance:
≥3.5 M
Weight (Unit):
≤22 Kg
Product Description

Product Overview
This product is a new type of glasses-free 3D advertising display developed by Shenglong Co., Ltd. specifically for commercial environments. It utilizes a hardware-plus-software (cloud-based) architecture, enabling centralized, regional, and individual terminal management, as well as remote content deployment and unified control. Based on principles of inverse perspective and binocular parallax, the display delivers an immersive visual experience with a sense of depth—without the need for any viewing aids. It offers a powerful visual impact that sets it apart from traditional flat-panel LCD advertising displays.


Product Features

1. Glasses-free spatial 3D display with strong visual impact.
2. High-definition foreground combined with immersive spatial effects; maintains native resolution.
3. Ultra-slim design to save space.
4. Includes Shenglong 3D content creation software for custom program editing.
5. Dedicated information distribution system enabling remote deployment and centralized management.
Supports multiple languages; suitable for applications such as retail chains, general retail, and showrooms.

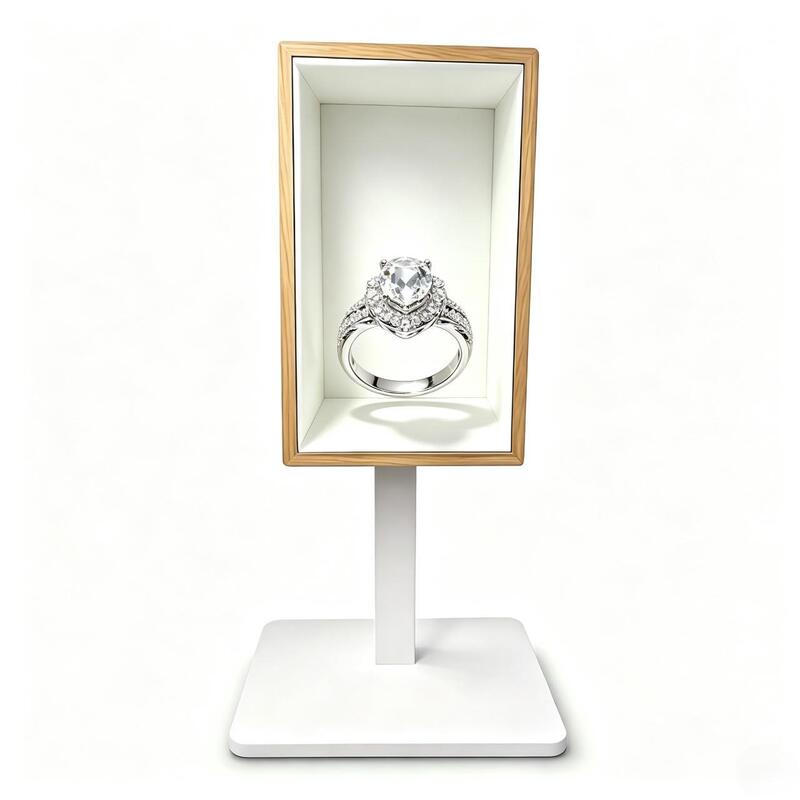

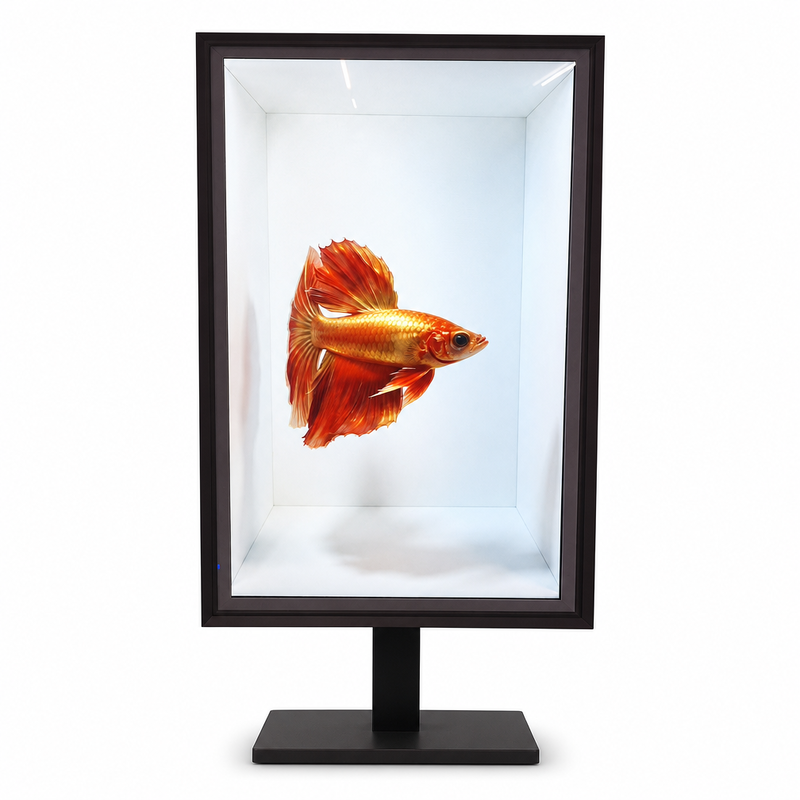

Scene graph

Glasses-free 3D advertising display

Glasses-free 3D advertising display

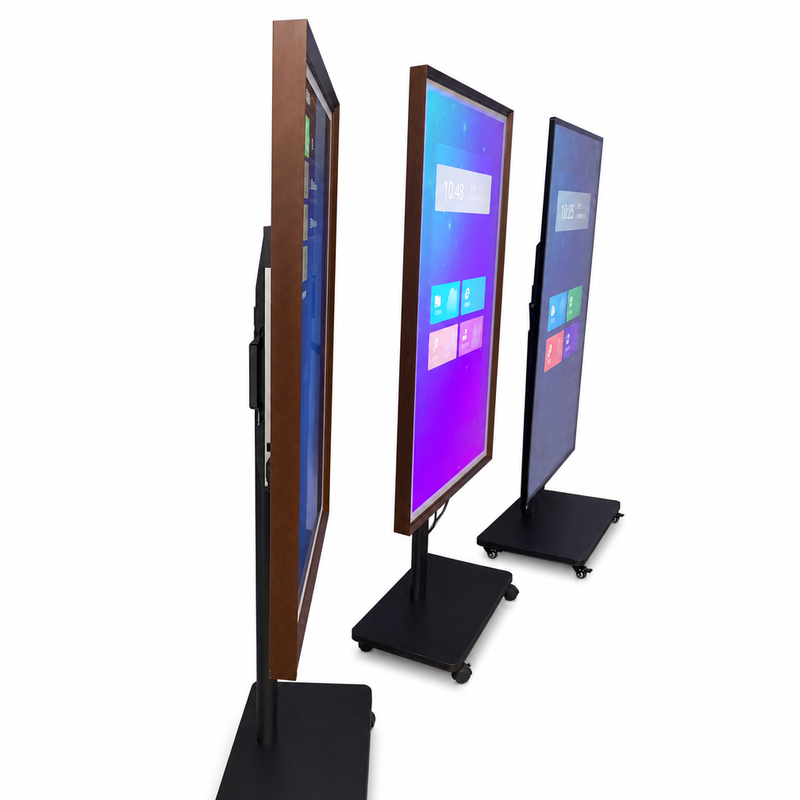

Customization

Glasses-free 3D advertising display

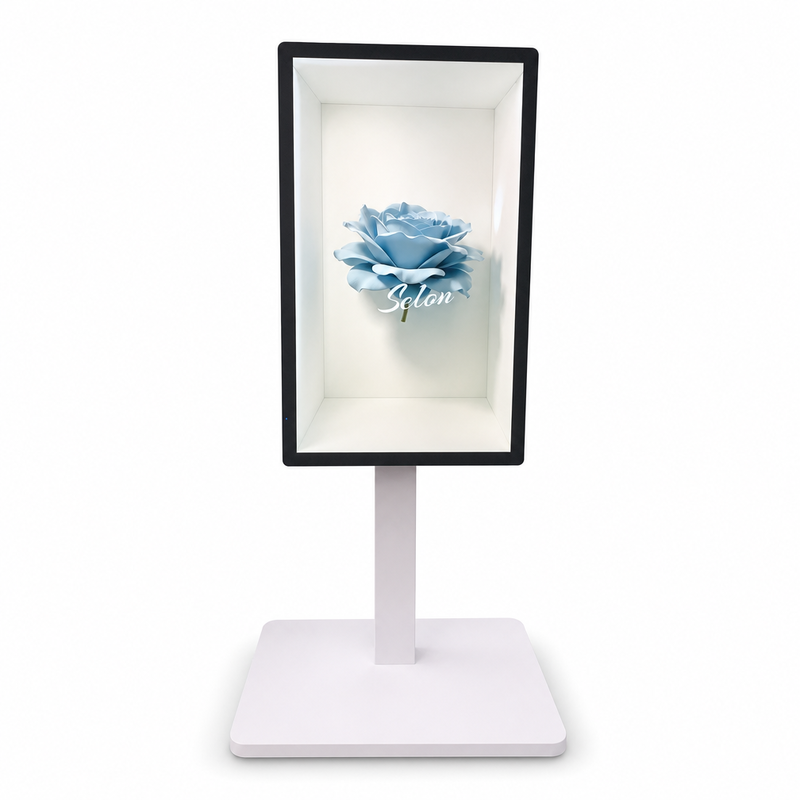

Close-up of details

Glasses-free 3D advertising display

Detailed Product Specifications

I. Basic Product Information

Category

Parameter

Specification

Product Information






























Product Type

Glasses-free 3D Advertising Display (Spatial 3D Display)

Bezel Color

Black (optional)

Optimal Viewing Distance

3.5 m

Energy Efficiency Rating

Level 3 Energy Efficiency

Installation Method

Wall-mount (floor stand optional)

Package Contents

Wall-mount bracket ×1, Remote control ×1

II. Screen and 3D Stereoscopic Display Specifications

Category

Parameter

Specification

Screen Specifications








































Screen Resolution

1920(RGB) × 1080(FHD)

Aspect Ratio

9:16 (Portrait Spatial Display)

Haze

Standard 5% (Optional 25%)

Screen Type

TFT-LED

Screen Grade

A+

Backlight

Direct-lit (LED)

HDR Support

Yes

Contrast Ratio

1200:1

Brightness

350 cd/m² (Brightness upgrade optional)

Response Time

8ms

Refresh Rate

60Hz

Scanning Mode

Progressive Scan

Supported Format (HD)

1080P

Horizontal/Vertical Viewing Angle

±178°

3D Specifications













3D Display Technology

Inverse Perspective Technology + Parallax Technology

3D Depth Viewing Angle

60°

Depth of Field Space

300mm

Color Gamut

72% NTSC / 100% sRGB

Pixel Arrangement

Pixels RGB Island

III. Loudspeaker Parameters

Category

Parameter

Specification

Speaker Parameters

Number of speakers

2

Speaker Parameters

Output power

2 × 5W (8Ω) @ 1kHz, THD+N < 10%

IV. Interface Configuration Parameters

Category

Parameter

Specification

Interface Configuration

























Headphone port

None

USB 2.0 port

2

HDMI Port

Input ×1

RJ45 Port

1

USB Supported Video Formats

.mpg/.avi/.ts/.mov/.mkv/.dat/.mp4/.vob

USB Supported Audio Formats

MP3, WMA

USB Supported Image Formats

JPG/JPEG/PNG

Network Connection

Wired/Wi-Fi (2.4GHz)

Bluetooth

Optional

V. Motherboard Configuration

Category

Parameter

Specification

Motherboard Configuration
















Operating System

Android 12

CPU

Quad-core 32-bit Cortex-A53

GPU

ARM Mali-450 GPU

RAM

1GB

Storage

16GB

System Configuration

Standard display configuration (Android/Windows options available)

VI. Power and Operating Environment

Category

Parameter

Specification

Power and Operating Environment
















Power Rating

3090W

Standby Power

<1W

Operating Voltage

110220V, 50/60Hz

Operating Temperature

0°C50°C

Operating Humidity

20%80% (non-condensing)

Storage Temperature

-20°C55°C
