Low Price Customized Indoor Outdoor P2.6 Stage Dance Floor Stand LED Display Panels Screen

Place of Origin:China
Brand Name:Shenglong
Model Number:SLED-D 50100 26/S
Minimum Order Quantity:1 piece
Price:$943.60 / piece
Product Details
Application: Indoor, Outdoor
Aspect Ratio: 16:9, 4:3, Customized
Screen Type: Led
Warranty: 3 Years, 5 Year, 1 Year
Brightness: ≥1200, ≥1200
Color: RGB
Color Depth: Supports Adjustable 0-24 Bits
Content Management System: Yes
Contrast Ratio: 10000:1
Control Method: Computer-Controlled
Dimensions: 500*1000*60
Display Function: Flat Display
Installation Type: Box Installation
Ip Rating: IP65
Lifespan (Hours): 100000
Media Available: Datasheet, EDA/CAD Models, Photo
Mounting Type: Behind Glass
Operating Temperature: 0°C-50°C
Operation System: Backlight
Pixel Density: 160000 147456 112896 65536
Pixel Pitch: P2.6
Pixels: 2.6mm, 2.6
RAM: Customized
Remote Device Management: No
Resolution: 192*384
Size: 500*1000 Mm
Specification: 500*1000*60
Storage: Customized
Usage Environment: -20~±55
Use: Shopping Mall, Floor
View Angle（H/V）: H.140°/V.140°
Voltage: 110/220V
Product Name: Floor Display Screen
Model: SLED-D 50100 26/S
Type: LED Display
Usage: Wedding
Feature: Easy Installation
Installation: Floor Staning
Certificate: CE ROHS FCC CCC ISO9001
Product Description
Product Images

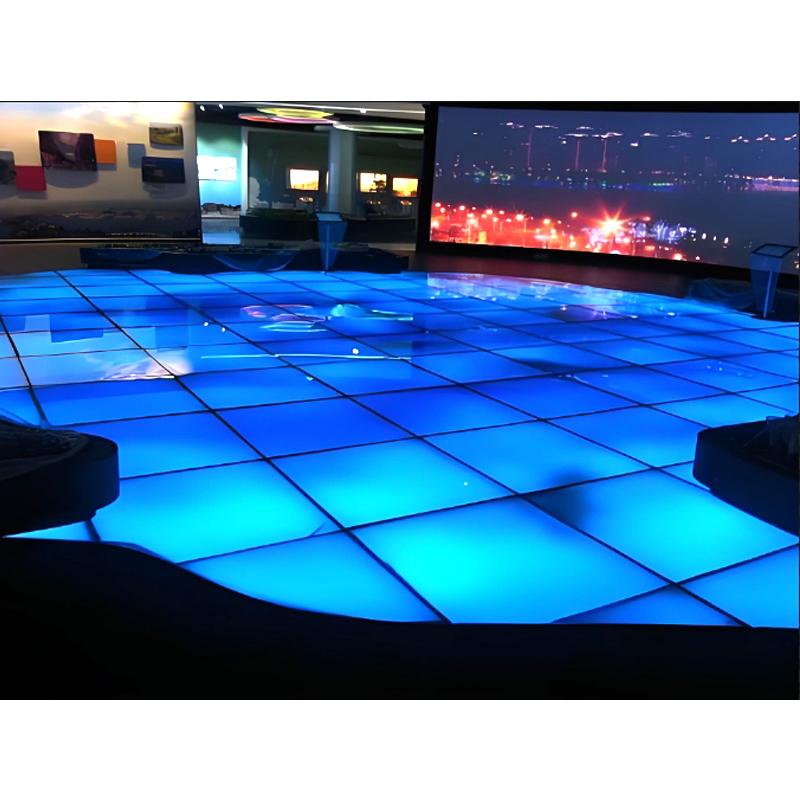

Low Price Customized Indoor Outdoor P2.6 Stage Dance Floor Stand LED Display Panels Screen 0

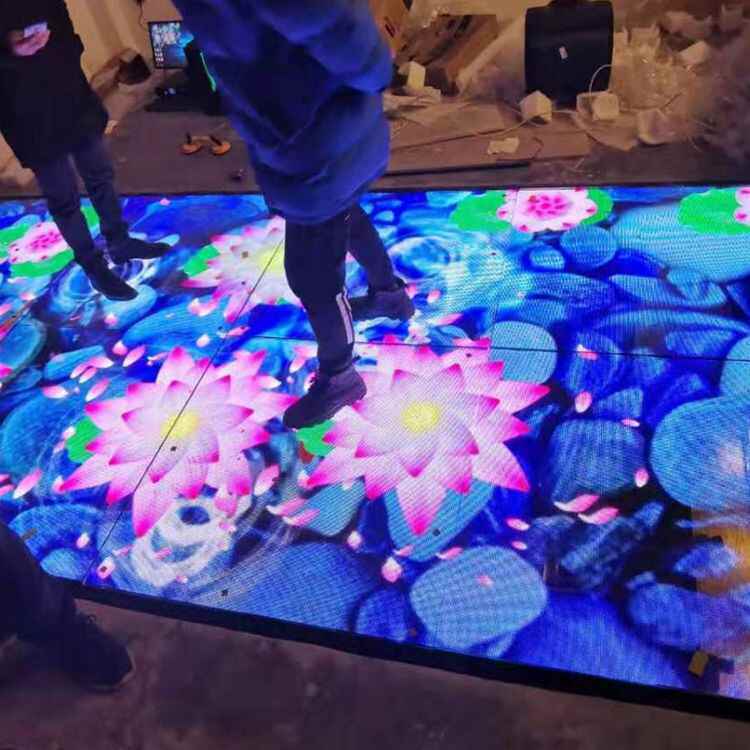

Low Price Customized Indoor Outdoor P2.6 Stage Dance Floor Stand LED Display Panels Screen 1

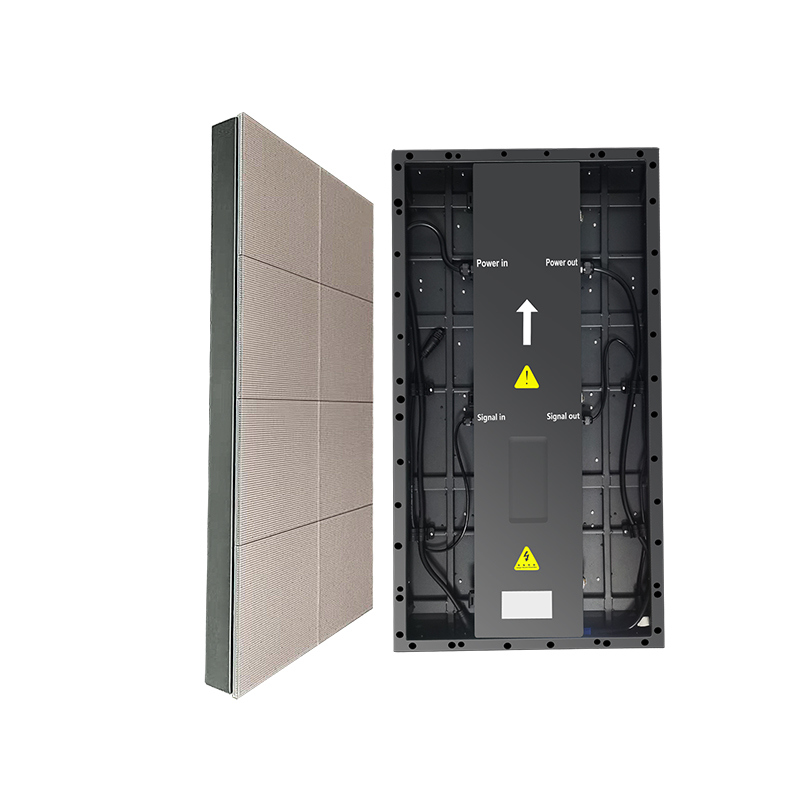

Low Price Customized Indoor Outdoor P2.6 Stage Dance Floor Stand LED Display Panels Screen 2
Technical Specifications
Parameter P2.5 P2.604 P2.976 P3.91
Module Parameter
Pixel Structure SMD LED 1R,1G,1B SMD LED 1R,1G,1B SMD LED 1R,1G, 1B SMD LED 1R,1G,1B
Pixel Pitch(mm) 2.5*2.5 2.604*2.604 2.976*2.976 3.91*3.91
Module Resolution(W*H) 100*100 96*6 84*84 64*64
Module Size(W*H*D)mm 250*250*18 250*250*18 250*250*18 250*250*18
Module Weight(KG) 0.75 0.75 0.75 0.75
Cabinet Parameter
Module Composition(W*H) 2*4 2*4 2*4 2*4
Cabinet Resolution(W*H) 200*400 192*384 168*336 128*256
Cabinet Size(W*H*D)mm 500*1000*78 500*1000*78 500*1000*78 500*1000*78
Pixel Density(point/㎡) 160000 147456 112896 65516
Protection Level Indoor(Front IP54，Back IP43) Indoor(Front IP54，Back IP43) Indoor(Front IP54，Back IP43) Indoor(Front IP54，Back IP43)
Flatness（mm） ≤1 ≤1 ≤1 ≤1
White Balance Brightness(nits) Indoor≥1300 Indoor≥1300 Indoor≥1300 Indoor≥1300
Color Temperature(K) 6000-9300Adjustable 6000-9300Adjustable 6000-9300Adjustable 6000-9300Adjustable
Horizontal Viewing Angle(°) ˃120 >120 >120 >120
Electrical Parameter
Power Consumption(A/Cabinet） DC6~7 DC6~7 DC6~7 DC6~7
Max Power Consumption(W/㎡)/Average Power Consumption(W/㎡) 800/300 800/300 800/300 800/300
Input Voltage(V) AC220V AC220V AC220V AC220V
Processing Performance
Driving Method Constant Current Driving Constant Current Driving Constant Current Driving Constant Current Driving
Frame Rate(Hz) 50＆60 50＆60 50＆60 50＆60
Refresh Rate(Hz)@60HzFrame Rate Signal ≥3840or≥7680 ≥3840or≥7680 ≥3840or≥7680 ≥3840or≥7680
Operating Parameter
Lifespan(hrs) 100,000H 100,000H 100,000H 100,000H
Operation Temperature(℃) -20—55 -20—55 -20—55 -20—55
Storage Temperature(℃) -30—60 -30—60 -30—60 -30—60
Operation Humidity(RH) Frost-free 10—90% 10—90% 10—90% 10—90%
Storage Humidity(RH) Frost-free 10—95% 10—95% 10—95% 10—95%
Out-of-control Point ≤4/100000 ≤4/100000 ≤4/100000 ≤4/100000
Screen Surface Color Color Consistency95%
（White transparent or tawny)		 Color Consistency95%
（White transparent or tawny)		 Color Consistency95%
（White transparent or tawny)		 Color Consistency95%
（White transparent or tawny)
Interactive Function No No No No

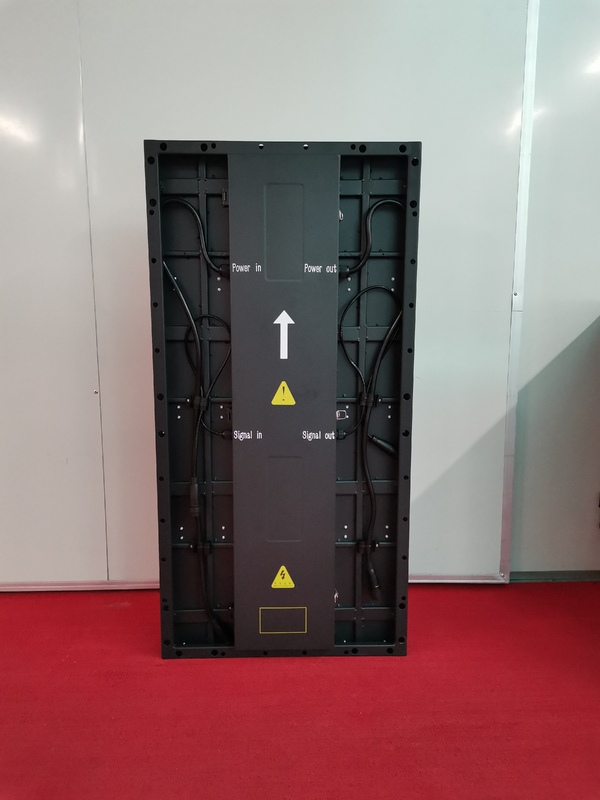

Low Price Customized Indoor Outdoor P2.6 Stage Dance Floor Stand LED Display Panels Screen 3
Low Price Customized Indoor Outdoor P2.6 Stage Dance Floor Stand LED Display Panels Screen 4
More Product Views

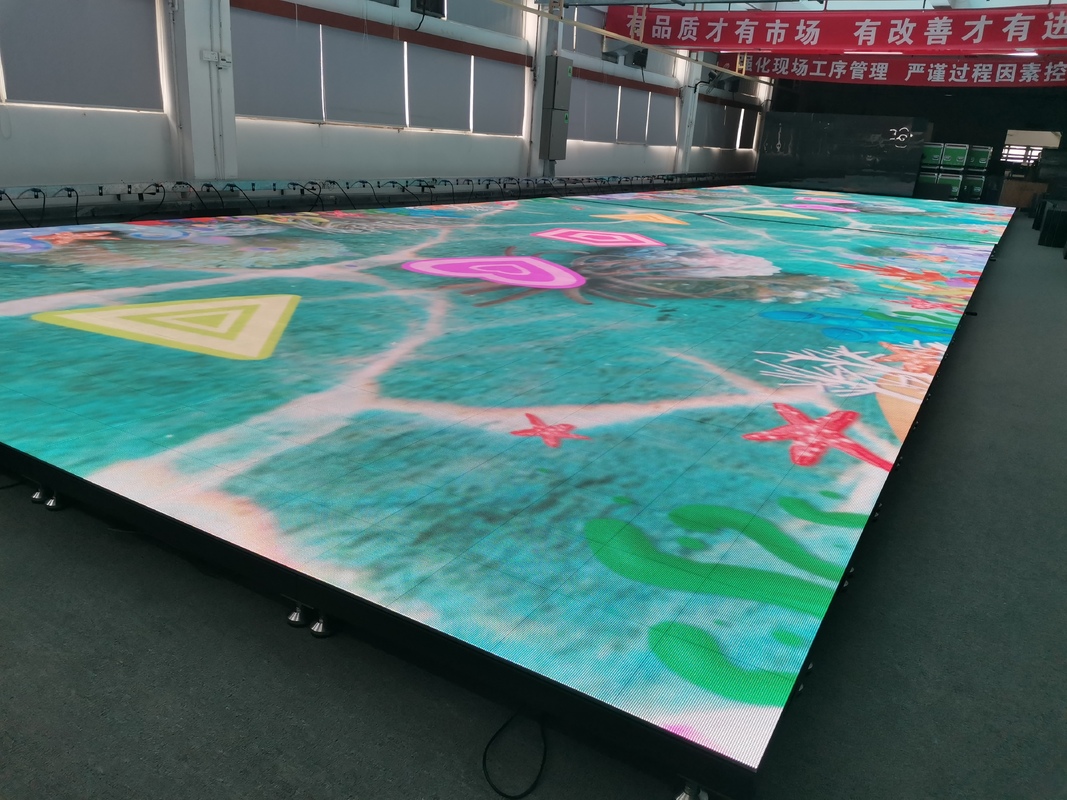

Low Price Customized Indoor Outdoor P2.6 Stage Dance Floor Stand LED Display Panels Screen 5

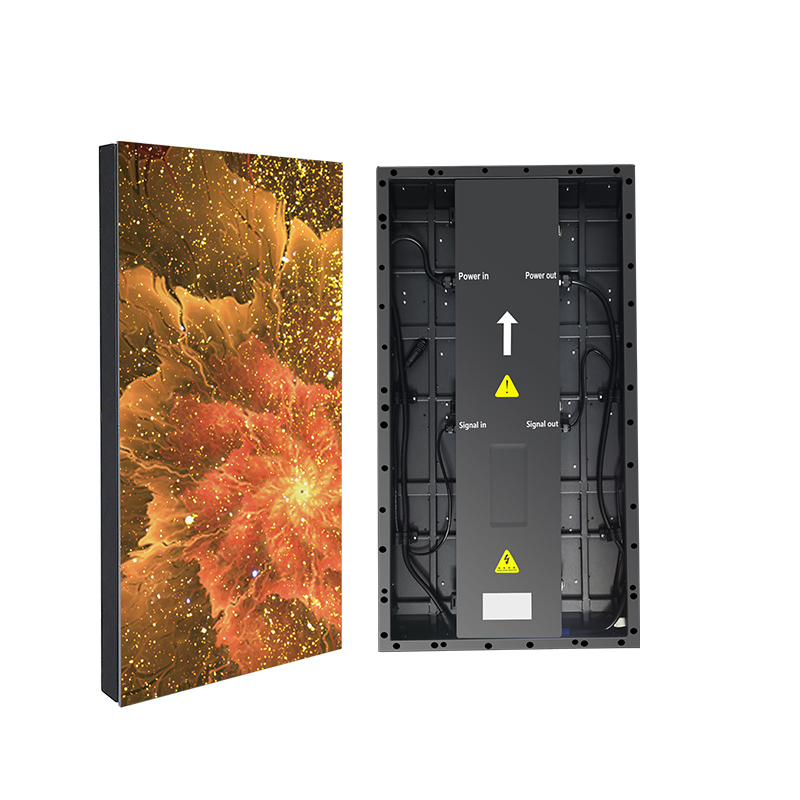

Low Price Customized Indoor Outdoor P2.6 Stage Dance Floor Stand LED Display Panels Screen 6
Low Price Customized Indoor Outdoor P2.6 Stage Dance Floor Stand LED Display Panels Screen 7
Low Price Customized Indoor Outdoor P2.6 Stage Dance Floor Stand LED Display Panels Screen 8
Frequently Asked Questions

Q1: Can you customize the LED products according to our requirements?

A1: Of course! We offer comprehensive customized services for LED screens.Our engineering team will provide you with a tailor-made solution within 24 hours.

Q2: Do your LED products have certifications for international markets (such as those from the EU and the US)?

A3: We have passed comprehensive certification and can meet global import standards, including: CE/RoHS; FCC ; ISO9001

Q3: What kind of after-sales support will you provide?

A4: We offer comprehensive after-sales support for our products:
Warranty period: 2-year warranty for the entire screen (the LED module is the core component, with a 3-year warranty); Spares: Each order will come with an additional 1-2% of spare LED modules/components for emergency replacement;

Q4: Can I place an order for a sample first to test the quality of the LED screen?

A5: Yes, sample orders are welcome! We can provide a small standard LED screen, or customize a sample according to your requirements to test. If your batch order reaches 100 square meters or more, the cost can be refunded.
